REL Habitat 1 in White
REL Habitat 1 in White
Couldn't load pickup availability
Engineered to provide high-performance low bass while remaining virtually invisible within the room, Habitat1 breaks all subwoofer rules and performs as one would expect from a REL.
The Invisible Bass Engine
Habitat1 takes bass to new levels by incorporating the room, your Habitat, into our design. It is common in design circles to speak of taking the room into account, but the complete system approach we employed has never been utilized so utterly for one singular purpose. Perfect, deep bass that emanates almost invisibly from somewhere hidden within the room.
Euro-Style Sophistication
THE SLIMMEST OF SUBWOOFERS

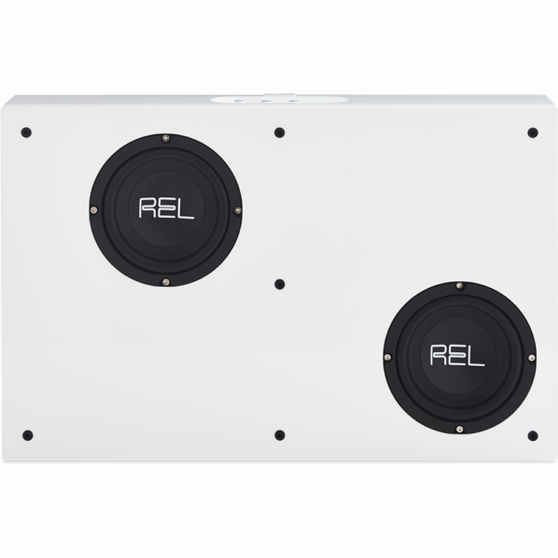

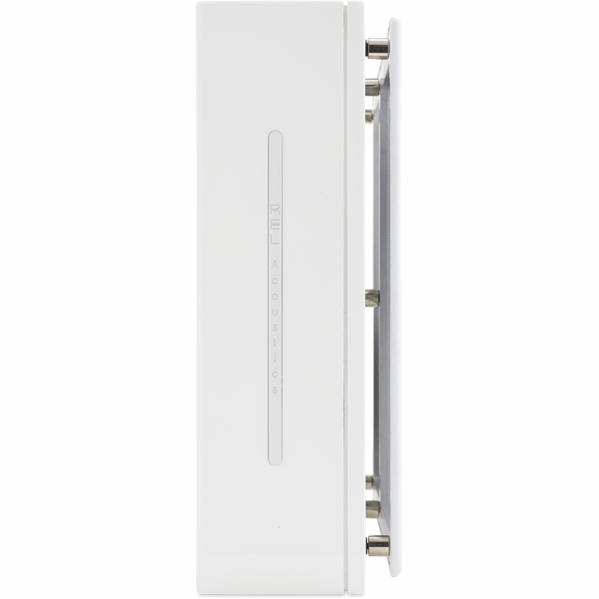

Habitat1 is designed to blend with its environment, making the entire living space work on behalf of music. A slim envelope, just 4.5” (110mm) thick, houses two fast, piston 6.5” (170mm) drivers that keep crisp, tight attack thumping into the room; while a wall-facing invisible 10” passive couples almost directly with the wall to produce deep, enveloping low bass. The 8 coats of lacquer and carefully evolved design of the mounting rails serve to keep Habitat from exciting rattles and vibrations in the mounting wall.
Bass Beyond Scale
A NEW LEVEL OF SOUND ENGINEERING
Starting with a blank sheet of paper, we designed custom forward-facing, 6.5″steel chassis mini bass engines capable of producing truly awe-inspiring bass from an ultra-thin envelope. To extend the power of Habitat1 beyond its thin, sleek design we use a 10″ pass driver that works in unison with the active drivers and the wall the unit is mounted to, dispersing bass throughout the room.
Compact Power
THE MONOBLOCK AMPLIFIER
On first listen to Habitat1, you will be forgiven for looking around in amazement trying to locate the large conventional subwoofer. Doing its part in the nearly invisible symphony that is Habitat1 is a powerful 150w monoblock amplifier. Potent, rich, and fast, this high-current mini-beast delivers all the current and drive to keep Habitat1 grooving for many years to come. As always, we approach design holistically, resulting in long-lived reliability. Habitat1 includes a full REL connectivity suite, a fast 8ms delay filter set, and our famed High-Level Input, as well as a .1/LFE input. LongBow zero compression wireless is included with every Habitat1 providing truly clean and seamless installation without the mess of cables.
Freedom
LONGBOW™ WIRELESS CONNECTIVITY
The complete absence of wires while moving the signal flawlessly from player to Habitat1 was a key piece of our design goals. LongBow permits very fast, uncompressed bass to be sent wirelessly within the same room approximately 45 feet (somewhat dependent upon room clutter). We have selected an uncompressed format as it results in natural, quick delivery compared with conventional wi-fi or Bluetooth systems. Because it is a REL, we developed LongBow with both high level (or low level with crossover intact) AND .1 channel delivery so that REL Theatre Reference performance can be maintained even when using our wireless delivery system.
Automatic detection and pairing is an important component to our approach. Simply plug both Habitat1 and Longbow Wireless Transmitter in within 30 seconds of each other and they will seek each other out and auto pair.
TYPE
(2) Front-firing active drivers, (1) rear-firing passive
ACTIVE DRIVER SIZE & MATERIAL
(2) 6.5 in., 165mm long-throw, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
10 in., 250mm steel chassis, black cone
LOW-FREQUENCY EXTENTION
-6dB at 30 Hz
INPUT CONNECTORS
High-Level Neutrik Speakon, Low-Level single RCA, LFE single RCA
OUTPUT CONNECTORS
N/A
POWER OUTPUT
150 watts (RMS)
AMPLIFIER TYPE
Class D
WIRELESS CAPABILITY
Longbow, Zero Compression, Individual discrete D/A and A/D Encoders
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
100-240V operation
FUSES
1.6A for 230V operation, 3.16A doe 120V operation
Dimensions
W X H X D
25 x 16 x 4.5 in. (635 x 406 x 114 mm)
NET WEIGHT
50 lbs. (23kg)
FINISH
Piano Black Lacquer, White Lacquer, 8 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes (2M cable intended for use with Longbow transmitter)
INTERCONNECT
USERS MANUAL
Yes
